4000 - 8000mm Length Automobile Longitudinal Beam Flat Plate 1200KN Nominal Force CNC Punching Production Line Model FPCP120

Brand Name : Auten

Model Number : FPCP120

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 100 sets/month

Delivery Time : 30 days

Main machine body type : Semi closed form

Sheet thickness : 4-14 mm

Length : 4000-15000 mm

Maximum tensile strength : 8b=510-950 N/mm2

Number of molds : 20，25

Number of control axes : 3 axes

Contact Now

Application:

This machine is specialized equipment designed for punching holes in flat longitudinal beams within the automotive industry.

Structural composition:

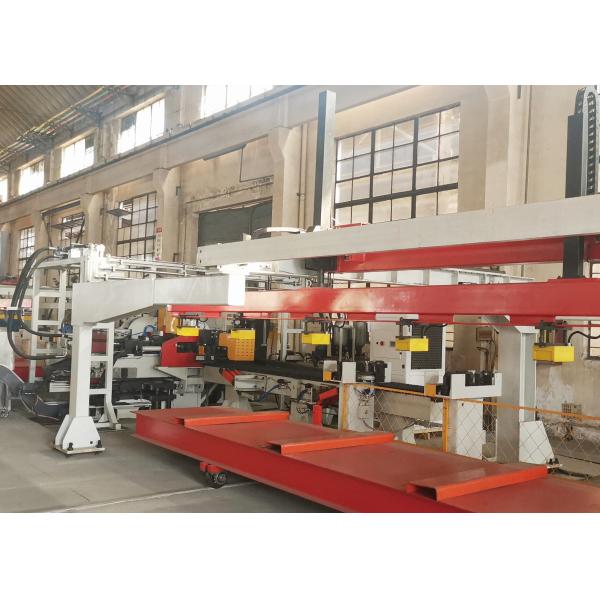

The machine primarily consists of automatic loading and unloading devices, a centering device for automatic compensation of variable-section plates, feeding devices, punching units, an automatic waste output device, along with integrated hydraulic, electrical, and pneumatic systems.

4000 - 8000mm Length Automobile Longitudinal Beam Flat Plate 1200KN Nominal Force CNC Punching Production Line Model FPCP120

Product features:

  1. High - Performance Control System
    The control system utilizes the SIEMENS 828D CNC system, combined with servo - motor - driven feeding, ensuring high work efficiency and stable precision of workpieces.
  2. Versatile Centering Mechanism
    A servo - controlled centering device is mounted on the feeding support roller, enabling the processing of variable - cross - section plates with a height difference ranging from 0 to 200mm.
  3. Flexible Mould Configuration
    The machine can accommodate 25 molds of different diameters, and the installation process is swift and convenient.
  4. Fully Automated Workflow
    The entire process, including plate uploading, punching, and downloading, is automated, significantly reducing the labor intensity.
  5. Efficient Waste Management
    It features an automatic waste output and collection function for enhanced operational tidiness.
  6. Intelligent Programming Capability
    The automatic programming software allows for direct import of AUTOCAD graphics or.DXF - format graphics generated by other CAD software. Through an intuitive human - machine interface, it can automatically generate machine tool processing programs, saving time and minimizing errors.

4000 - 8000mm Length Automobile Longitudinal Beam Flat Plate 1200KN Nominal Force CNC Punching Production Line Model FPCP120

Main technical parameters:

No. Name Value
1 Nominal force 1200KN
2 Processing plate size and range
3 Length 4000～8000mm
Width 200～550mm
Thickness 3～6mm
Incoming sheet material sickle bending ≤7mm/10m
X-axis sheet unevenness ≤10mm/1000mm ,≤20mm/8000mm
Y-axis sheet unevenness 5mm
Sheet warping ≤50mm
Sheet material mechanical properties σb=510～850N/mm2
4 Max. punchingdiameter φ60mm
5 Number of modules 25个
6 Max. speed
X-axis Max=50m/min
Y-axis Max=30m/min
7 Processing accuracy
X-axis ±0.25/600mm ,±0.50 / 3000mm,±0.7 / 8000 mm
Y-axis ±0.2 mm / 600 mm
8 Trolley load capacity 20 T

4000 - 8000mm Length Automobile Longitudinal Beam Flat Plate 1200KN Nominal Force CNC Punching Production Line Model FPCP120
